Optimize your farming operations with our carefully crafted aerial agriculture solutions.

Bigger Loads, Faster Flow, Better Efficiency

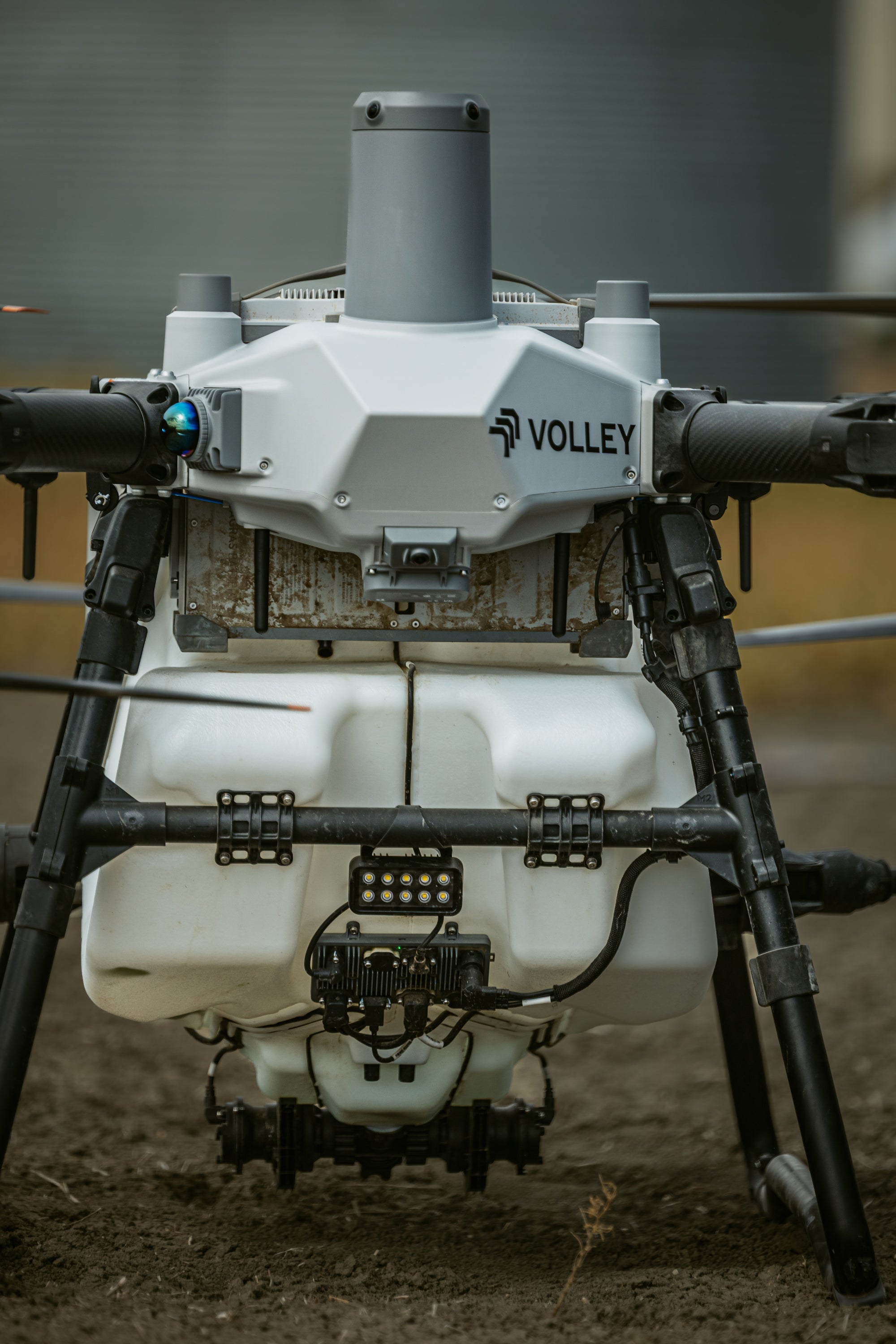

AGRAS T100

AGRAS T100

$48,505.00

We make things that work better and last longer. Our products solve real problems with clean design and honest materials.
AGRAS T100

Bigger Loads, Faster Flow, Better Efficiency

AGRAS T100

Proudly Supplied by Volley Aerobotics – Supporting Canadian Farmers

Purpose-built for the scale and complexity of Canadian field crop production, the DJI AGRAS T100 brings advanced drone technology to growers. With its heavy-duty capacity, real-time field mapping, and intelligent spraying systems, the T100 is designed to boost efficiency across the vast acreages common in Alberta, Southern Ontario, Saskatchewan, and Manitoba.

The T100 delivers cost-effective, precise applications when timing matters most.

What's Included

The Volley Aerobotics T100 Core Kit includes:

  • DJI AGRAS T100 Intelligent Flight System
  • RM700 remote controller
  • (3) DB2160 Intelligent Flight Batteries
  • (1) C12000 Intelligent Battery Charging Station (3 Phase fast charging, single phase slow charging)
  • AGRAS T100 Battery Cooling Kit
  • (2) 110V/15A charging cables
  • (1) 240V/50A charging cable
  • (1) 110V to 12V adapter for Battery Cooling Kit
  • (1) Spraying Module
Description

The AGRAS T100 moves drone operations into large scale broadacre, with a likely doubling of the T50 performance in most conditions. It inherits the powerful twin-rotor propulsion system and split-type torque resistant structure for next level stability when carrying 26 gallons worth of liquid payload. With added feature such as Ai Obstacle Avoidance, LiDar scanning, millimeter-wave radar and penta-vision allowing for complete environmental awareness.

Training & Support

Each T100 core kit comes accompanied by expert level training across Canada from a local representative.

Specifications

Weight

  • Weight for spraying: 75 kg (standard with 2 nozzles)
    Weight for spraying: 77 kg (optional with 4 nozzles)
    Weight for spreading: 75 kg (equipped with spreading system)
    Weight for lifting: 65 kg (equipped with lifting system)
    Weight for lifting: 90 kg (equipped with dual-battery lifting system)

Max Takeoff Weight

  • Max takeoff weight for spraying: 175 kg (standard with 2 nozzles)
    Max takeoff weight for spraying: 177 kg (optional with 4 nozzles)
    Max takeoff weight for spreading: 175 kg (equipped with spreading system)
    Max takeoff weight for lifting: 165 kg (equipped with lifting system)
    Max takeoff weight for lifting: 170 kg (equipped with dual-battery lifting system)

Max Diagonal Wheelbase

  • 2330 mm (diagonal)

Dimensions

  • 3220 mm × 3224 mm × 975 mm(arms and propellers unfolded)
    1820 mm × 1840 mm × 975 mm(arms unfolded and propellers folded)
    1105 mm × 1265 mm × 975 mm(arms and propellers folded)

Hovering Accuracy Range (with strong GNSS signal)

  • RTK Enabled:
    ±10 cm (horizontal), ±10 cm (vertical)
    RTK not enabled:
    Horizontal ± 0.6 m, vertical ± 0.3 m

Max Configurable Flight Radius

  • 2 km

Operating Temperature

  • 0 °C to 40 °C

Max Wind Resistance

  • <6 m/s

Propulsion System - Motors

Stator Size

  • 155 × 16 mm

KV

  • 60 rpm/V

Propulsion System - Propellers

Material

  • Carbon Fiber Composite

Dimensions

  • 62 inches

Quantity

  • 8 pairs

Spraying System

Model

  • LS100

Dimensions

  • 880 mm × 870 mm × 810 mm (spray rod folded)
    1020 mm × 1930 mm × 810 mm (spray rod unfolded)

Spraying System - Spray Tank

Material

  • HDPE

Volume

  • 100 L

Operating Payload

  • 100 kg

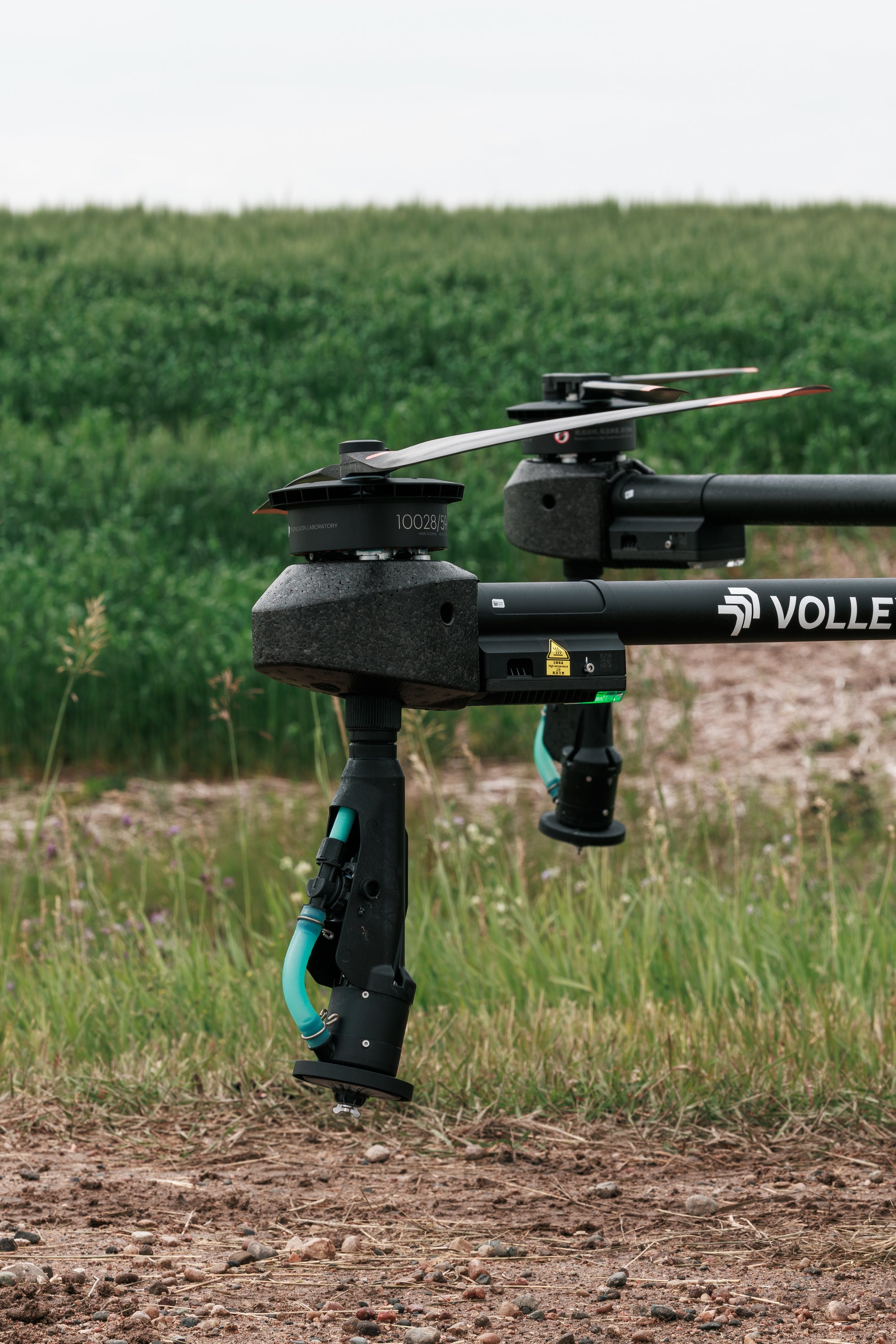

Spraying System - Sprinklers

Model

  • LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle)

Quantity

  • 2 (Standard) / 4 (Optional)

Nozzle Distance

  • 1834 mm (Two Nozzles / Four Nozzles Outermost)

Droplet Size

  • 50 - 500 μm

Effective Spray Width

  • 5 - 13 m

Spraying system - Delivery Pumps

Type

  • Impeller Pump (Magnetic Drive)

Quantity

  • 2

Max Flow Rate

  • 30 L/min (Standard 2 nozzles), 40 L/min (Optional 4 nozzles)

Spreading Load

Dimensions

  • 900 mm × 820 mm × 920 mm

Compatible Material Diameter

  • Standard configuration:
    Extra-large auger: 0.5 mm - 10 mm granules
    Medium auger: 4 mm - 6 mm granules
    Optional:
    Large auger: 4 mm - 10 mm granules
    Small auger: 0.5 mm - 4 mm granules

Spreading System 4.0

Spreading Tank Volume

  • 150 L

Spreader structure type

  • Centrifugal Disc

Discharge Structure Type

  • Screw Feeder Feeding

Max Discharge Rate

  • 400 kg/min (compound fertilizer)

Max load inside the spreading operation box

  • 100 kg

Effective spreading width

  • 3 - 10 m

400 kg/min (compound fertilizer)

Dimensions

  • Standard payload: 805 mm × 764 mm × 669 mm

Lifting System

Load capacity

  • 100 kg

Lifting Cable Length

  • 10 m (standard configuration)

Recommended cable length

  • 10 - 15 m

Operating Temperature

  • 0 °C to 40 °C

Dual Battery Lifting System

Dimensions

  • 805 mm × 960 mm × 669 mm

Load capacity[4]

  • 80 kg

Lifting Cable Length

  • 10 m (standard configuration)

Emergency Escape Mode

  • Cable Fuse Disconnection and Escape

Recommended cable length

  • 10 - 15 m

Operating Temperature

  • 0 °C to 40 °C

Safety System 3.0

Millimeter wave radar EIRP

  • < 20 dBm (NCC / MIC / KC / CE / FCC)

Operating Temperature

  • 0 °C to 40 °C

Operating environment requirements

  • Adequate light and discernible surroundings

Field of View (FOV)

  • Laser radar: Vertical 272°, Horizontal 60°
    Front Radar: Horizontal 360°, Vertical ± 45°
    Downward Radar: Left and Right ± 12.5°, Front and Back ± 22.5°
    Rear Radar: Left and Right ± 45°, Front and Back ± 45°
    Quad vision system: Horizontal 360°, Vertical 180°
    FPV camera: Horizontal ± 86°, Vertical 108°

Measurement range

  • ≤ 60 m

Effective safe obstacle avoidance speed

  • ≤ 13.8 m/s

Effective Obstacle Avoidance Height

  • ≥ 1.5 m

Remote Controller

Model

  • TKPL 2

Screen

  • 7-inch LCD touchscreen; resolution: 1920 × 1200; brightness: 1400 cd/m²

Storage Temperature Range

  • Less than one month: 0° to 45° C (-22° to 113° F)

Charging Temperature

  • 5° to 40° C (41° to 104° F)

Internal Battery Runtime

  • 3.8 hours

External Battery Runtime

  • 3.2 hours

Charging Type

  • Use a USB-C fast charger with a maximum power of 65 W (maximum voltage 20 V), and it is recommended to use the DJI Portable Charger.

Charging Time

  • 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB2160 Intelligent Flight Battery

Weight

  • 14.7 ± 0.3 kg

Capacity

  • 41000 mAh

Nominal Voltage

  • 52 V

    C12000 Smart Charger

    Charger Model

    • CSX901-12000

    Dimensions

    • 456 mm × 291 mm × 107 mm

    Weight

    • 13.13 kg

    Input Voltage

    • Three-phase AC input: 175 - 520 V
      Single-phase AC input: 200 - 264 V

    Output Voltage

    • 62 V

    Rated output current

    • 194 A

    Rated Power

    • 12000 W (three-phase 380 V input)3000 W (single-phase 220 V input)

    Recharge Time

    • 8 - 9 minutes (DB2160 Intelligent Flight Battery, 30% - 95% charge)

    Protection functions

    • Over-temperature, over-voltage, under-voltage, short circuit, fan stall, and other protection functions

    Operating Temperature

    • 0° to 40° C

    Output Channels

    • 1

    Compatible with Intelligent Flight Battery

    • DB1580 / DB2160 Intelligent Flight Battery

    Relay

    Dimensions

    • 112 mm × 112 mm × 51 mm (None Antenna)
      120 mm × 112 mm × 101 mm (with antenna)

    Weight

    • 630 g

    Input

    • 2.7 V - 24 V

    Power consumption

    • 10.48 W (FCC), 8.8 W (SRRC)

    Battery capacity

    • 6500 mAh

    Operating Time

    • 5 hours

    Operating Frequency

    • 2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.725 - 5.850 GHz

    Effective signal range

    • 5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC)
      (In an interference-free, unobstructed environment, flight altitude 2.5 m)

    Charging Time

    • 2.5 hours (30W recharge)

    Ingress Protection Rating

    • IP55

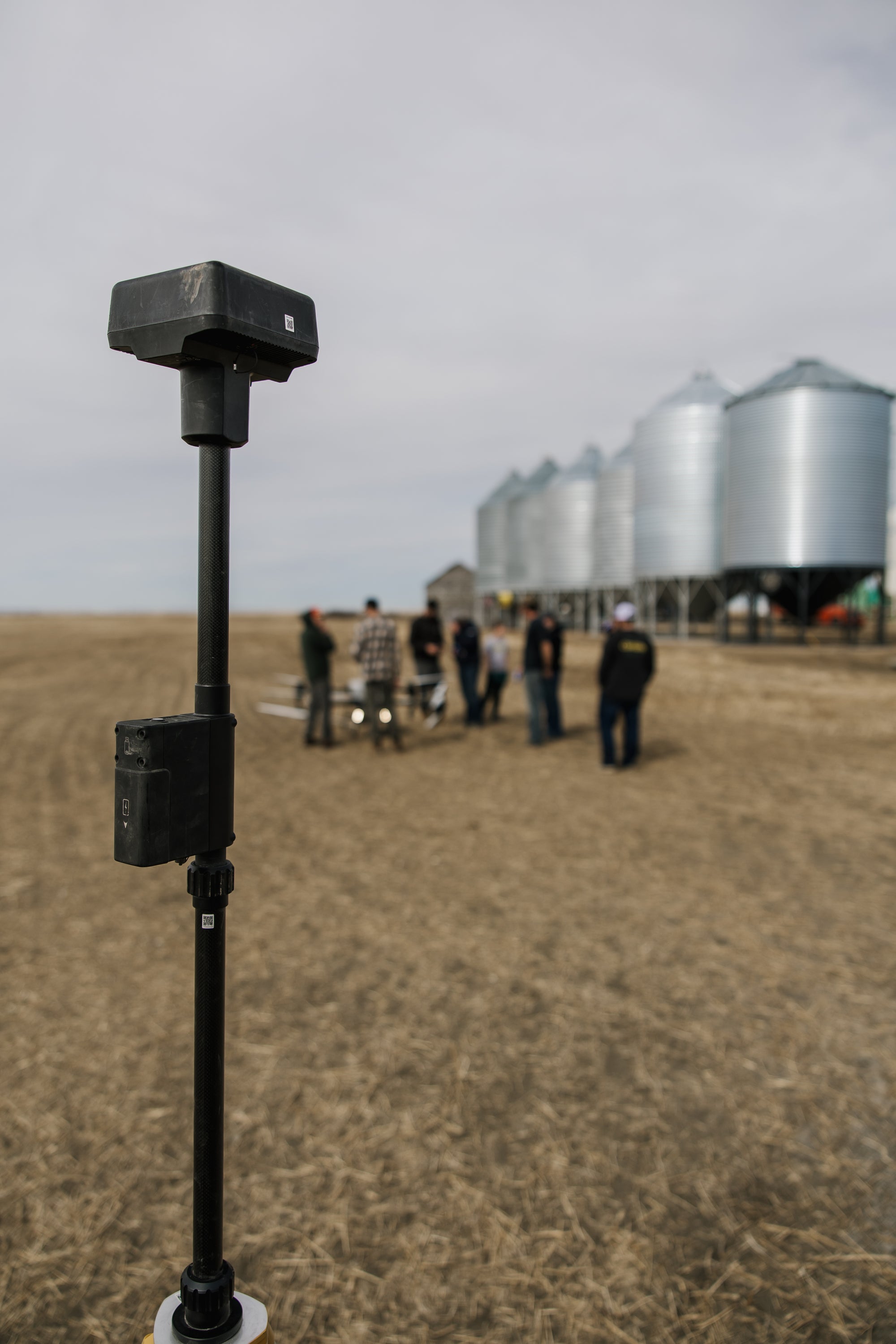

    D-RTK 3 AG

    Supports satellite systems

    • GPS: L1/L2/L5
      BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
      Galileo: E1/E5a/E5b/E6
      GLONASS: G1/G2
      QZSS: L1CA/L2C/L5
      L-BAND

    Dimensions

    • 345 mm × 244 mm × 300 mm

    Weight

    • 3.77 kg (including packaging)

    Power consumption

    • 7 W

    Battery capacity

    • 6500 mAh

    Operating Time

    • 7 hours

    Operating Frequency

    • Broadcast Mode: O4: 2.4G/5.8G
      Relay Mode: Not Supported

    • Effective signal range

    • FCC: 15 km
      SRRC: 12 km
      CE/JP: 8 km

    Charging Time

    • 2.5 hours (30W recharge)

    Ingress Protection Rating

    • IP67

    Positioning Accuracy[7]

    • PPP Satellite-Based Service Accuracy:
      Convergence Time: 20 mins
      Horizontal: 30 cm (RMS)
      Elevation: 40 cm (RMS)
      Network RTK Calibration:
      Horizontal: 0.8 cm + 1 ppm (RMS)
      Vertical: 1.5 cm + 1 ppm (RMS)
      1 ppm: Accuracy decreases by 1 mm for every 1 km increase in distance between the aircraft and the base station. For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm.
         Inquire Now

    DJI AGRAS T25 – Packs a Punch

    AGRAS T25

    AGRAS T25

    $23,359.00

    We make things that work better and last longer. Our products solve real problems with clean design and honest materials.
    AGRAS T25

    DJI AGRAS T25 – Packs a Punch

    AGRAS T25

    Brought to You by Volley Aerobotics – Supporting Canadian Producers with Targeted Aerial Solutions

    Compact, powerful, and remarkably easy to operate, the DJI AGRAS T25 is the perfect fit for Canadian producers looking to manage insecticides, pastures, and small plot treatments with efficiency and accuracy. Whether you're targeting pests in cereal crops, spraying hard-to-reach fence lines, or applying herbicide in rotational pastureland, the T25 brings professional-grade performance to smaller, more focused agricultural tasks.

    Backed by Volley Aerobotics, Canada's trusted ag drone supplier, the T25 offers a new level of flexibility for farmers, ranchers, and agronomists across Western Canada.


         Inquire Now

    Ready. Set. Go.

    AGRAS T50

    AGRAS T50

    $36,699.00

    Be first to fly the DJI Agras T100. Reserve with a $5,000 credited deposit to get $3,000 off + free training. Offer ends Sept 7.
    AGRAS T50

    Ready. Set. Go.

    AGRAS T50

    The current flagship heavy-lift agricultural drone from DJI.  Generally considered to be the industry standard by which all other ag drones are measured.  Look past the exaggerated industry talking points and take advantage of our 20,000+ acres of real farming experience on the T50 platform. Reliable, efficient, and un-paralleled ease of use.

    What's Included

    The Volley Aerobotics T50 Core Kit includes:

    • DJI AGRAS T50 drone with spray tank
    • RM700 remote controller
    • (3) DB1560 Intelligent Flight Batteries
    • (1) C8000 Intelligent Battery Charging Station
    • AGRAS T50 Battery Cooling Kit
    • (2) 110V/15A charging cables
    • (1) 240V/50A charging cable
    • (1) 110V to 12V adapter for Battery Cooling Kit
    • (1) 65W charger
    Description

    The AGRAS T50 moves drone operations into broadacre, and expands into orchards. It inherits the powerful twin-rotor propulsion system and split-type torque resistant structure for next level stability when carrying 10.5 gallon worth of liquid payload. With it's re-designed dual atomizers, it meters accurate volume whilst offering on-the-fly droplet size adjustment. Multi-mission capable, it can fly from field to field for smaller fields sizes on a single plan.

    Training & Support

    Each T50 core kit comes accompanied by expert level training across Canada.

    Specifications

    Weight

    • 39.9 kg (excl. battery)
      52 kg (incl. battery)

    Max Takeoff Weight

    • Max takeoff weight for spraying: 92 kg (at sea level)
      Max takeoff weight for spreading: 103 kg (at sea level)

    Max Diagonal Wheelbase

    • 2200 mm

    Dimensions

    • 2800×3085×820 mm (arms and propellers unfolded)
      1590×1900×820 mm (arms unfolded and propellers folded)
      1115×750×900 mm (arms and propellers folded)

    Hovering Accuracy Range (with strong GNSS signal)

    • RTK enabled:
      Horizontal: ±10 cm, Vertical: ±10 cm
      RTK disabled:
      Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

    RTK/GNSSOperating Frequency

    • RTK:
      GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
      GNSS:
      GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

    Max Configurable Flight Radius

    • 2000 m

    Max Wind Resistance

    • 6 m/s

    Propulsion System - Motors

    Stator Size

    • 100×33 mm

    KV

    • 48 rpm/V

    Power

    • 4000 W/rotor

    Propulsion System - Propellers

    Material

    • Nylon carbon fiber filament

    Dimension

    • 54 in (1371.6 mm)

    Propeller Rotation Diameter

    • 1375 mm

    Quantity

    • 8

    Dual Atomizing Spraying System - Spray Tank

    Material

    • Plastic (HDPE)

    Volume

    • 40 L

    Operating Payload [1]

    • 40 kg[1]

    Quantity

    • 1

    Dual Atomizing Spraying System - Sprinklers

    Model

    • LX8060SZ

    Quantity

    • 2

    Nozzle Distance

    • 1570 mm（Rear Nozzles）

    Droplet Size

    • 50-500 μm

    Effective Spray Width [2]

    • 4-11 m (at a height of 3 m above the crops)

    Dual Atomizing Spraying System - Delivery Pumps

    Type

    • Impreller pump (magnetic drive)

    Quantity

    • 2

    Single Pump Flow Rate

    • 0-12 L/min

    Max Flow Rate

    • 16 L/min (2 sprinklers); 24 L/min (4 sprinklers)

    T50 Spreading System

    Compatible Material Diameter

    • 0.5-5 mm dry granules

    Spread Tank Volume

    • 75 L

    Spread Tank Internal Load

    • 50 kg

    Spread Width

    • 8 m

    Phased Array Radar System

    Model

    • RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)

    Terrain Follow

    • Max slope in mapping-free operation: 50°
      Altitude detection range: 1-50 m
      Stabilization working range: 1.5-30 m

    Obstacle Avoidance [4]

    • Obstacle sensing range (multidirectional): 1-50 m
      FOV:
      Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
      Rear phased array radar: vertical 360°, horizontal ±45°
      Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
      Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
      Sensing direction: 360° multidirectional sensing

    Binocular Vision System

    Measurement range

    • 0.5-29 m

    Effective Sensing Speed

    • ≤10 m/s

    FOV

    • Horizontal: 90°, Vertical: 106°

    Operating Environment

    • Adequate light and discernible surroundings

    Remote Controller

    Model

    • RM700B

    Operating Frequency [5]

    • 2.4000-2.4835 GHz, 5.725-5.850 GHz

    Max Transmission Distance

    • 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m)

    Wi-Fi Protocol

    • Wi-Fi 6

    Wi-Fi Operating Frequency [5]

    • 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

    Bluetooth Protocol

    • Bluetooth 5.1

    Bluetooth Operating Frequency

    • 2.4000-2.4835 GHz

    GNSS

    • GPS+Galileo+BeiDou

    Screen

    • 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

    Operating Temperature

    • -20° to 50° C (-4° to 122° F)

    Storage Temperature Range

    • Less than one month: -30° to 45° C (-22° to 113° F)
      One to three months: -30° to 35° C (-22° to 95° F)
      Six months to one year: -30° to 30° C (-22° to 86° F)

    Charging Temperature

    • 5° to 40° C (41° to 104° F)

    Internal Battery Runtime

    • 3 hours 18 minutes

    External Battery Runtime

    • 2 hours 42 minutes

    Charging Type

    • It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

    Charging Time

    • 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

    DB1560 Intelligent Flight Battery

    Model

    • DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)

    Weight

    • Approx. 12.1 kg

    Capacity

    • 30000 mAh

    Nominal Voltage

    • 52.22 V

      C10000 Intelligent Power Supply

      Model Number

      • CSX702-9500

      Dimensions

      • 400 × 266 × 120 mm

      Weight

      • Approx. 11.4 kg

      Input/Output

      • Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX
        Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX
        Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX
        Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX
        Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX
        Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX

      Charging Time

      • Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery)

      Protection Functions

      • Over-voltage, over-charge, under-voltage and over-temperature protection.

      Charging Safety

      • AC wire protection, power wire protection, and charge connector protection

        Dimensions

        • 120×110×100 mm

        Weight

        • ≤575 g

        Input Voltage [6]

        • 9 V3 A / 12 V2.5 A / 15 V2 A

        Power Consumption

        • 9 W (SRRC), 12 W (FCC)

        Capacity

        • 6500 mAh

        Operating Time

        • 4 hours

        Operating Frequency

        • 2.4000-2.4835 GHz, 5.725-5.850 GHz

        Max Transmission Distance

        • 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
          (unobstructed, free of interference, and at a flight altitude of 2.5 m)

        Charging Time

        • 2 hours and 20 minutes (when using a standard DJI charger)

        IP Rating

        • IP55
                 Inquire Now

        All our accessories are designed to adapt to your workflow—mix, match, and expand as you need.

        1. Mapping

        Map. Render. Analyze.

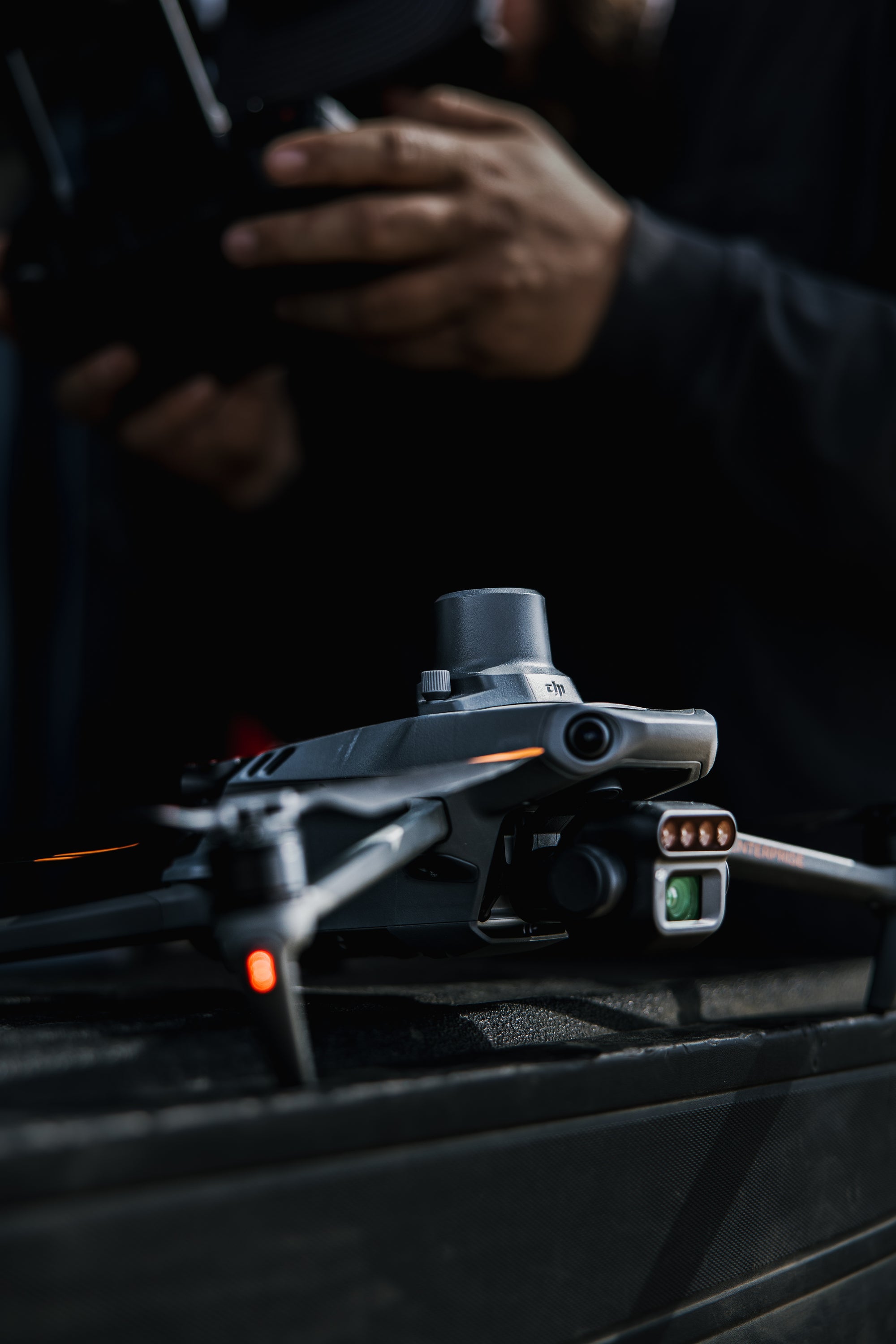

        Mavic 3 Multispectral

        Mavic 3 Multispectral

        $6,785.00

        Mavic 3 Multispectral provides insight and clarity of mission areas. The mechanical shutter cameras allows for expansive swaths of land to be mapped in minutes.
        Mavic 3 Multispectral

        Map. Render. Analyze.

        Mavic 3 Multispectral

        Reliable, efficient, and un-paralleled ease of use.

        WHAT'S INCLUDED

        The Volley Aerobotics M3M Map More Package includes:

        • (1) Mavic 3 Multispectral with 1 Intelligent Flight Battery, Hard-case, Controller and 2 Spare Propellers
        • (3) Intelligent Flight Batteries
        • (1) Charging Hub with 100W charger
        • Full set of Spare Propellers

        DESCRIPTION

        The Mavic 3 Multispectral takes mapping and analysis to the next level with its RGB mechanical shutter camera offering 3.5 cm/pixel quality at 400 ft of altitude while flying at full speed. Map over 500 acres per hour depending on wind conditions.

        Additionally, the built-in Multispectral capacity provides the ability to spot disease, weed pressure and stress within crop and allow for NDVI, GDI and HDI processing via Smartfarm (with AGRAS) or Pix4D/Terra for variable rates applications.

        TRAINING & SUPPORT

        Each Mavic 3 Multispectral comes accompanied by expert level training across Canada.

        Specifications

        Image Sensor

        • 4/3 CMOS
          Effective Pixels: 20 MP

        Lens

        • FOV: 84°
          Equivalent focal length: 24 mm
          Aperture: f/2.8 to f/11
          Focus: 1 m to ∞

        ISO Range

        • 100-6400

        Shutter speed

        • Electronic shutter: 8-1/8000 s
          Mechanical shutter: 8-1/2000 s

        Max Image Size

        • 5280×3956

        Photo Shooting Mode

        • Single shot: 20 MP
          Timed: 20 MP
          JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
          JPEG + RAW: 3/5/7/10/15/20/30/60 s
          Panorama: 20 MP (original material)

        Video Resolution

        • H.264:
          4K: 3840×2160@30fps
          FHD: 1920×1080@30fps

        Max Video Bitrate

        • 4K: 130Mbps
          FHD: 70Mbps

        Supported File System

        • exFAT

        Image Format

        • JPEG/DNG (RAW)

        Video Format

        • MP4 (MPEG-4 AVC/H.264)

        Multispectral Camera

        • Image Sensor

        • 1/2.8-inch CMOS, effective pixels: 5 MP

        Lens

        • FOV: 73.91° (61.2° x 48.10°)
          Equivalent focal length: 25 mm
          Aperture: f/2.0
          Focus: Fixed Focus

        Multispectral Camera Band

        • Green (G): 560 ± 16 nm;
          Red (R): 650 ± 16 nm;
          Red Edge (RE): 730 ± 16 nm;
          Near infrared (NIR): 860 ± 26 nm;

        Gain Range

        • 1x-32x

        Shutter Speed

        • Electronic Shutter: 1/30~1/12800 s

        Max Image Size

        • 2592×1944

        Image Format

        • TIFF

        Video Format

        • MP4 (MPEG-4 AVC/H.264)

        Photo Shooting Mode

        • Single shot: 5 MP
          Timelapse: 5 MP
          TIFF: 2/3/5/7/10/15/20/30/60 s

        Video Resolution

        • H.264
          FHD: 1920 x 1080@30fps
          Video content: NDVI/GNDVI/NDRE

        Max Video Bitrate

        • Stream: 60 Mbps
                 Inquire Now

        2. Precision

        Stand it up. Turn it on.

        D-RTK2 Mobile Station

        D-RTK2 Mobile Station

        $4,299.00

        DJI's RTK2 Mobile Station is a stand-alone, setup and forget RTK connectivity providing seamless integration and ultimately, centimeter level accuracy.
        D-RTK2 Mobile Station

        Stand it up. Turn it on.

        D-RTK2 Mobile Station

        Specifications

        GNSS Recevier

        GNSS Frequency Simultaneously receive：
        GPS: L1 C/A, L2, L5
        BEIDOU: B1, B2, B3
        GLONASS: F1, F2
        Galileo: E1, E5A, E5B
        Positioning Accuracy Single Point
        Horizontal：1.5 m(RMS)
        Vertical：3.0 m(RMS)
        RTK
        Horizontal：1 cm+ 1 ppm(RMS)
        Vertical：2 cm+ 1 ppm(RMS)
        1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
        Positioning Update Rate 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
        Cold Start ＜45 s
        Hot Start ＜10 s
        Recapture Time ＜1 s
        Initialization Reliability ＞99.9%
        Differential Data Format RTCM 2.X/3.X

        IMU

        Features Built-in high-precision 6-axis accelerometer
        D-RTK 2 movement monitoring
        Sloping measurements
        Electronic bubble level

        Physical Characteristics

        Dimensions(D-RTK 2 body with extension rod) 168 mm×168 mm×1800mm
        IP Rating IP65

        Communication and Data Storage

        Data Link OcuSync, Wi-Fi, LAN, 4G
        Operating Frequency 2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
        5.725 GHz to 5.850 GHz (China, United States, Australia)
        EIRP OcuSync
        2.4 GHz
        SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
        FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
        5.8 GHz
        FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
        Wi-Fi
        2.4 GHz
        SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
        FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
        5.8 GHz
        FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm
        Communication Distance Operating Mode 1/3

SRRC/NCC/FCC/MIC/KCC/CE: 2 km

(Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

        Operating Mode 4

Between the aircraft and mobile station:

NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km

Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)

        Operating Mode 5

NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km
        (Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)
        Memory Capacity 16 GB

        Electrical Characteristics

        Power Consumption 12 W
        Power Supply 16.5 to 58.8VDC
        Battery Type：Lithium-ion battery
        Capacity: 4920 mAh
        Energy: 37.3 WH
        Run Time WB37 battery：＞2 h
        MG-12000P battery：＞50 h

        Operating Temperature

        Operating Temperature 4° to 131° F (-20° to 55° C)
        Inquire Now

        3. Applying

        Ready. Set. Go.

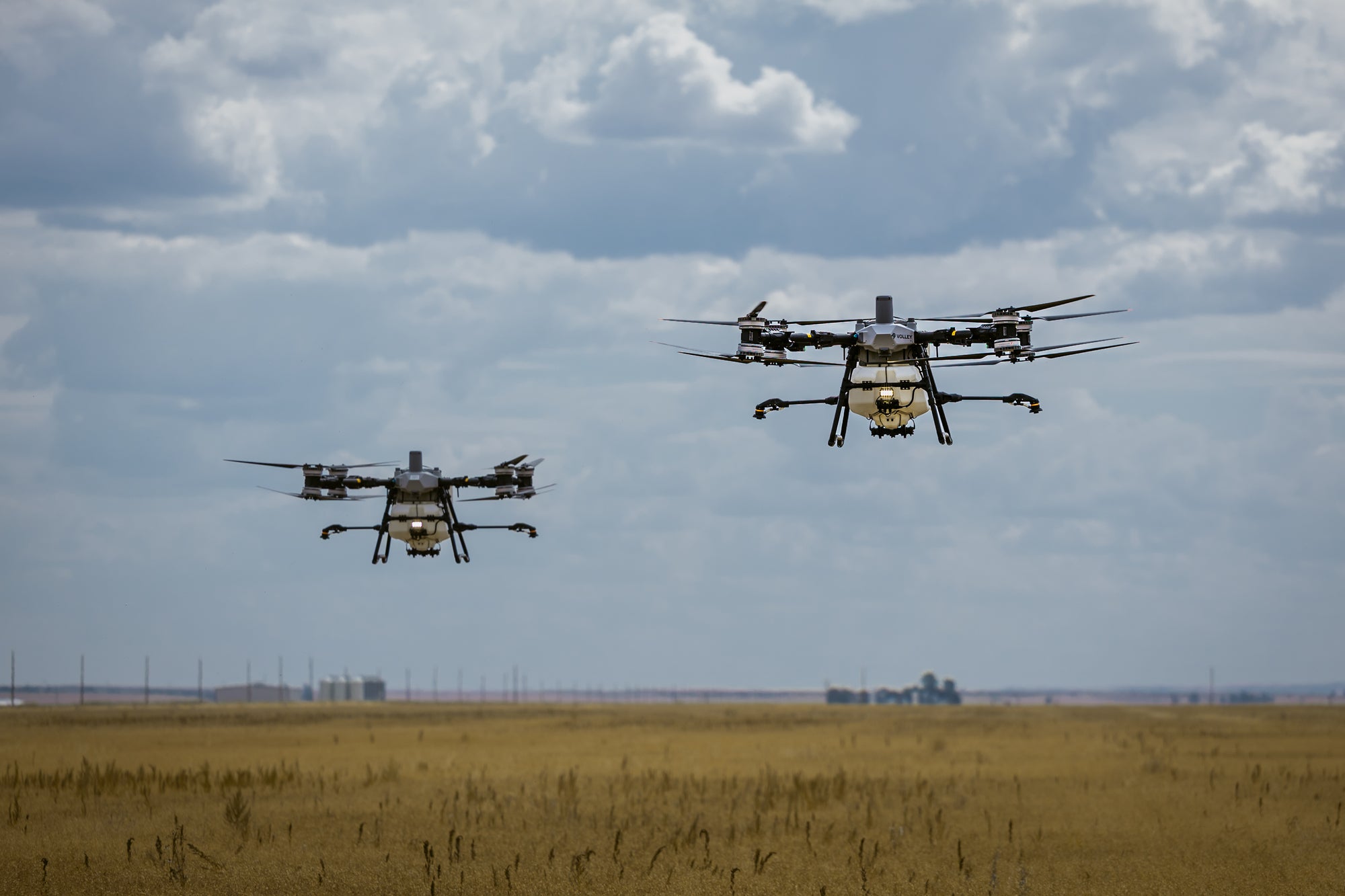

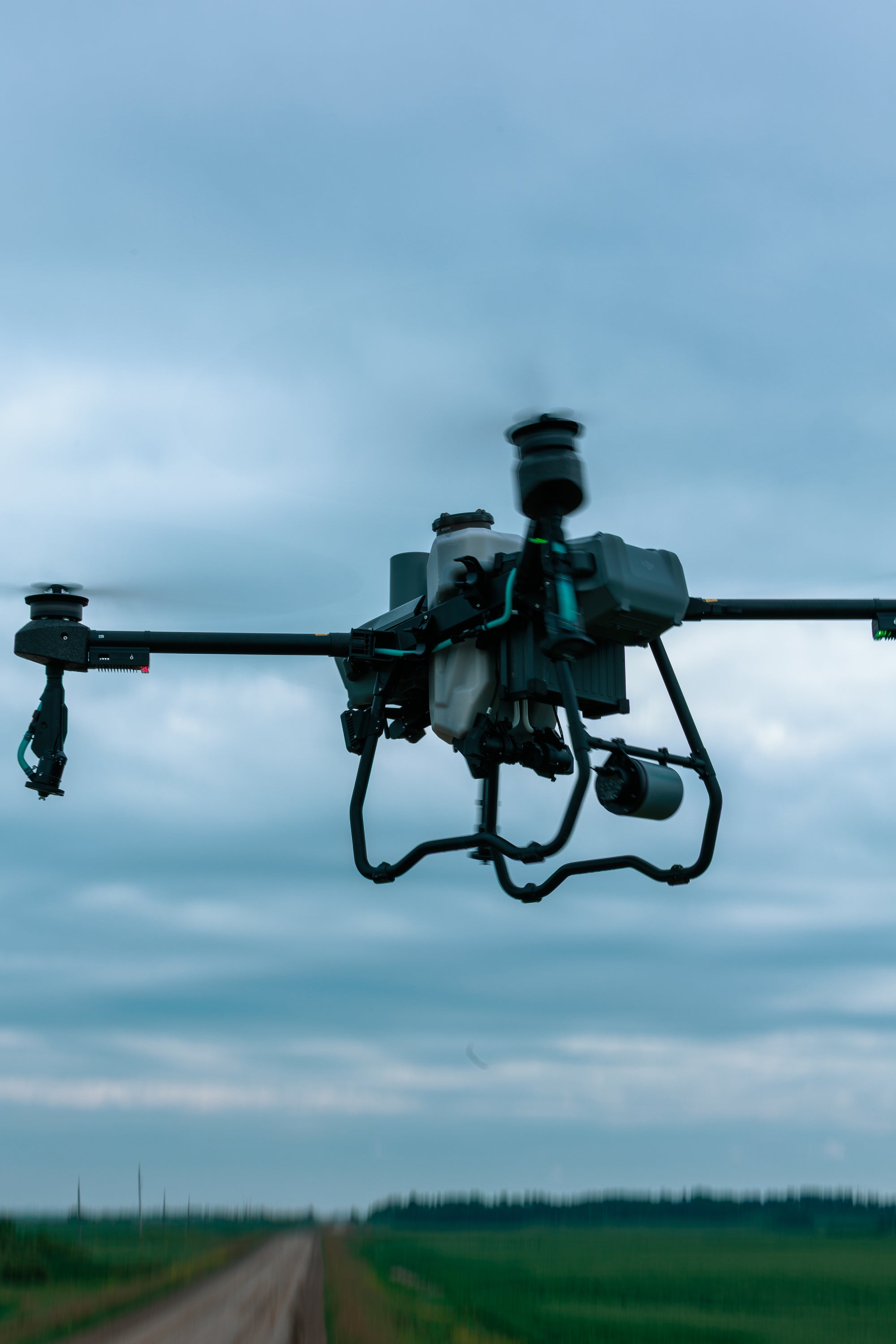

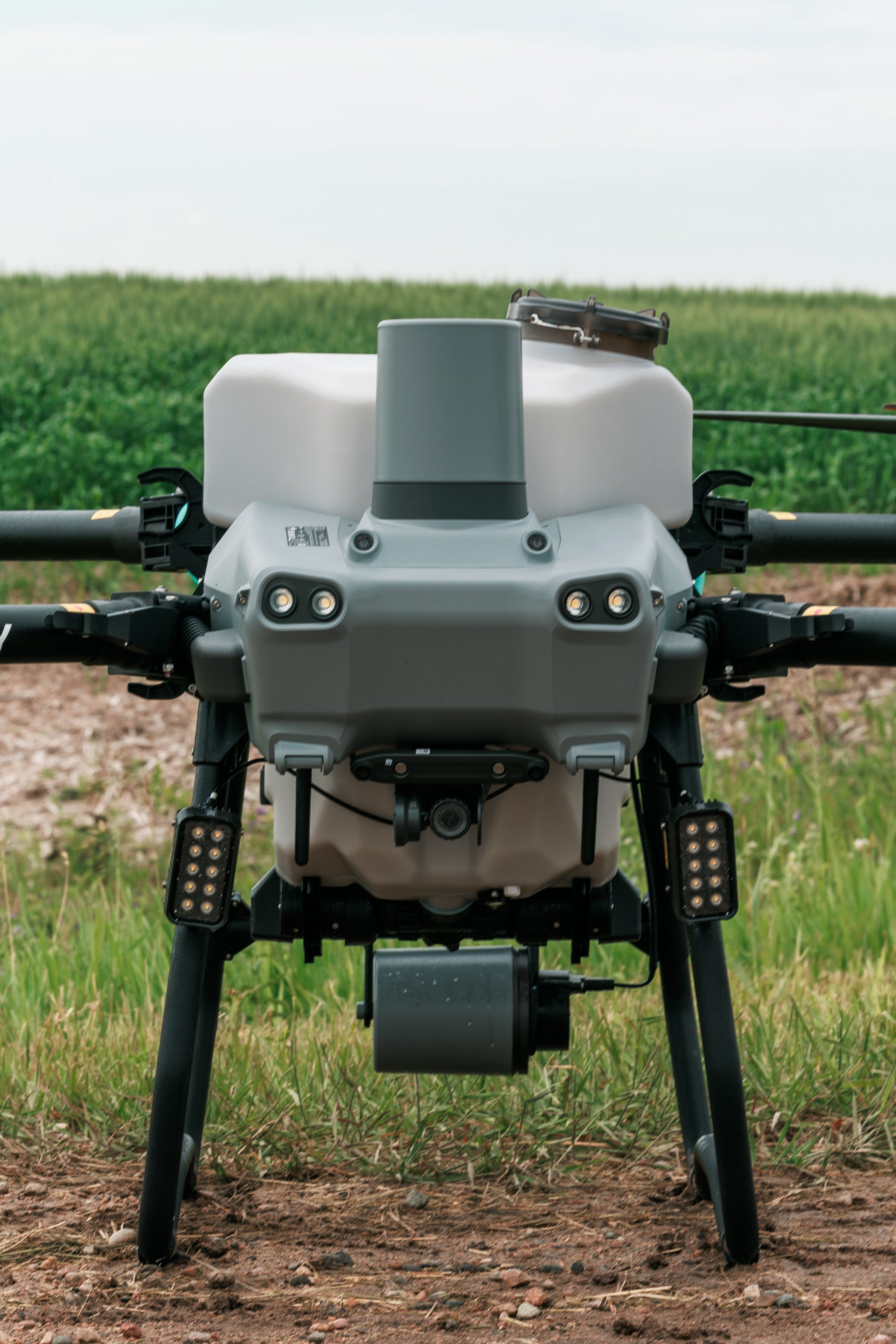

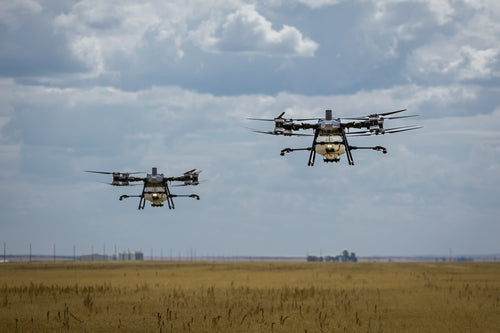

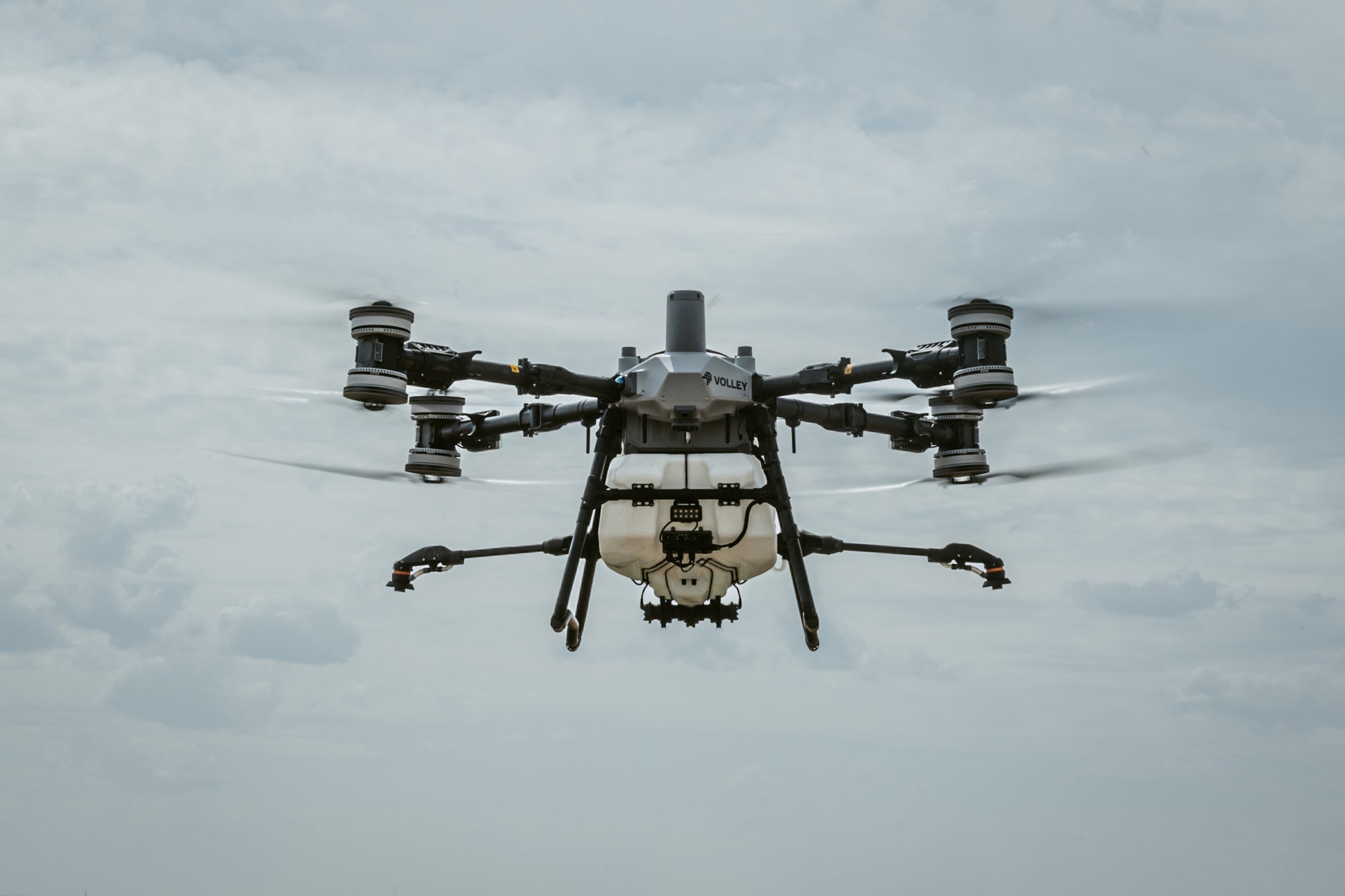

        AGRAS T50

        AGRAS T50

        $36,699.00

        The workhorse of drones. Get it done quickly, reliably and accurate with proven performance in the field whether applying liquids, seeding or granular materials.
        AGRAS T50

        Ready. Set. Go.

        AGRAS T50

        The current flagship heavy-lift agricultural drone from DJI.  Generally considered to be the industry standard by which all other ag drones are measured.  Look past the exaggerated industry talking points and take advantage of our 20,000+ acres of real farming experience on the T50 platform. Reliable, efficient, and un-paralleled ease of use.

        What's Included

        The Volley Aerobotics T50 Core Kit includes:

        • DJI AGRAS T50 drone with spray tank
        • RM700 remote controller
        • (3) DB1560 Intelligent Flight Batteries
        • (1) C8000 Intelligent Battery Charging Station
        • AGRAS T50 Battery Cooling Kit
        • (2) 110V/15A charging cables
        • (1) 240V/50A charging cable
        • (1) 110V to 12V adapter for Battery Cooling Kit
        • (1) 65W charger
        Description

        The AGRAS T50 moves drone operations into broadacre, and expands into orchards. It inherits the powerful twin-rotor propulsion system and split-type torque resistant structure for next level stability when carrying 10.5 gallon worth of liquid payload. With it's re-designed dual atomizers, it meters accurate volume whilst offering on-the-fly droplet size adjustment. Multi-mission capable, it can fly from field to field for smaller fields sizes on a single plan.

        Training & Support

        Each T50 core kit comes accompanied by expert level training across Canada.

        Specifications

        Weight

        • 39.9 kg (excl. battery)
          52 kg (incl. battery)

        Max Takeoff Weight

        • Max takeoff weight for spraying: 92 kg (at sea level)
          Max takeoff weight for spreading: 103 kg (at sea level)

        Max Diagonal Wheelbase

        • 2200 mm

        Dimensions

        • 2800×3085×820 mm (arms and propellers unfolded)
          1590×1900×820 mm (arms unfolded and propellers folded)
          1115×750×900 mm (arms and propellers folded)

        Hovering Accuracy Range (with strong GNSS signal)

        • RTK enabled:
          Horizontal: ±10 cm, Vertical: ±10 cm
          RTK disabled:
          Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

        RTK/GNSSOperating Frequency

        • RTK:
          GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
          GNSS:
          GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

        Max Configurable Flight Radius

        • 2000 m

        Max Wind Resistance

        • 6 m/s

        Propulsion System - Motors

        Stator Size

        • 100×33 mm

        KV

        • 48 rpm/V

        Power

        • 4000 W/rotor

        Propulsion System - Propellers

        Material

        • Nylon carbon fiber filament

        Dimension

        • 54 in (1371.6 mm)

        Propeller Rotation Diameter

        • 1375 mm

        Quantity

        • 8

        Dual Atomizing Spraying System - Spray Tank

        Material

        • Plastic (HDPE)

        Volume

        • 40 L

        Operating Payload [1]

        • 40 kg[1]

        Quantity

        • 1

        Dual Atomizing Spraying System - Sprinklers

        Model

        • LX8060SZ

        Quantity

        • 2

        Nozzle Distance

        • 1570 mm（Rear Nozzles）

        Droplet Size

        • 50-500 μm

        Effective Spray Width [2]

        • 4-11 m (at a height of 3 m above the crops)

        Dual Atomizing Spraying System - Delivery Pumps

        Type

        • Impreller pump (magnetic drive)

        Quantity

        • 2

        Single Pump Flow Rate

        • 0-12 L/min

        Max Flow Rate

        • 16 L/min (2 sprinklers); 24 L/min (4 sprinklers)

        T50 Spreading System

        Compatible Material Diameter

        • 0.5-5 mm dry granules

        Spread Tank Volume

        • 75 L

        Spread Tank Internal Load

        • 50 kg

        Spread Width

        • 8 m

        Phased Array Radar System

        Model

        • RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)

        Terrain Follow

        • Max slope in mapping-free operation: 50°
          Altitude detection range: 1-50 m
          Stabilization working range: 1.5-30 m

        Obstacle Avoidance [4]

        • Obstacle sensing range (multidirectional): 1-50 m
          FOV:
          Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
          Rear phased array radar: vertical 360°, horizontal ±45°
          Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
          Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
          Sensing direction: 360° multidirectional sensing

        Binocular Vision System

        Measurement range

        • 0.5-29 m

        Effective Sensing Speed

        • ≤10 m/s

        FOV

        • Horizontal: 90°, Vertical: 106°

        Operating Environment

        • Adequate light and discernible surroundings

        Remote Controller

        Model

        • RM700B

        Operating Frequency [5]

        • 2.4000-2.4835 GHz, 5.725-5.850 GHz

        Max Transmission Distance

        • 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m)

        Wi-Fi Protocol

        • Wi-Fi 6

        Wi-Fi Operating Frequency [5]

        • 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

        Bluetooth Protocol

        • Bluetooth 5.1

        Bluetooth Operating Frequency

        • 2.4000-2.4835 GHz

        GNSS

        • GPS+Galileo+BeiDou

        Screen

        • 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

        Operating Temperature

        • -20° to 50° C (-4° to 122° F)

        Storage Temperature Range

        • Less than one month: -30° to 45° C (-22° to 113° F)
          One to three months: -30° to 35° C (-22° to 95° F)
          Six months to one year: -30° to 30° C (-22° to 86° F)

        Charging Temperature

        • 5° to 40° C (41° to 104° F)

        Internal Battery Runtime

        • 3 hours 18 minutes

        External Battery Runtime

        • 2 hours 42 minutes

        Charging Type

        • It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

        Charging Time

        • 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

        DB1560 Intelligent Flight Battery

        Model

        • DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)

        Weight

        • Approx. 12.1 kg

        Capacity

        • 30000 mAh

        Nominal Voltage

        • 52.22 V

          C10000 Intelligent Power Supply

          Model Number

          • CSX702-9500

          Dimensions

          • 400 × 266 × 120 mm

          Weight

          • Approx. 11.4 kg

          Input/Output

          • Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX
            Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX
            Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX
            Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX
            Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX
            Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX

          Charging Time

          • Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery)

          Protection Functions

          • Over-voltage, over-charge, under-voltage and over-temperature protection.

          Charging Safety

          • AC wire protection, power wire protection, and charge connector protection

            Dimensions

            • 120×110×100 mm

            Weight

            • ≤575 g

            Input Voltage [6]

            • 9 V3 A / 12 V2.5 A / 15 V2 A

            Power Consumption

            • 9 W (SRRC), 12 W (FCC)

            Capacity

            • 6500 mAh

            Operating Time

            • 4 hours

            Operating Frequency

            • 2.4000-2.4835 GHz, 5.725-5.850 GHz

            Max Transmission Distance

            • 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
              (unobstructed, free of interference, and at a flight altitude of 2.5 m)

            Charging Time

            • 2 hours and 20 minutes (when using a standard DJI charger)

            IP Rating

            • IP55
                         Inquire Now

            All our equipment is built to scale with you. Explore our expansion packs to customize as you grow.

            Spread and seed.

            Granular Spreader

            Cover-cropping over corn? Fertilizing in water-logged fields in Spring? Seeding Pasture? With the optional granular spreader you now have a solutions at your fingertips, at the time of your choosing.

            More Information

            reliable range.

            Relay Station

            Planning to fly beyond visual sightlines?  Take the stress out of your advanced operations and relay the control signal around terrain, buildings, trees, or whatever else may get between you and the aircraft.
            Inquire Now

            clarity.

            Night Operations

            DJI Night Flight Kits now available for installation on T25 and T50, providing floodlight levels of brightness for those early starters or late beginners.
            Inquire Now

            Receive Expert Level Training

            Thousands of drone miles flown.

            Canada-wide

            Locations in Ontario, Manitoba, Saskatchewan, Alberta and British Columbia.

            Client Support

            Tech Support when you need it.
            -70.347778198329° N
            Nova Scotia
            -125.229931315775° W
            53.5461° N
            -3.378610020627° W
            Edmonton
            -61.209526076414° N
            79.3832° W
            -3.378610020627° W
            53.5461° N
            British Columbia
            49.8954° N
            Winnipeg
            97.1385° W

            In-field experience

            We're Farmers First

            We know real world numbers. The founders of Volley Aerobotics have spent 15-18 hour days in the field operating this equipment.

            Get in touch
            Canada-wide

            This is the turnkey solution to implement drone systems at scale across your farming operation. Mapping, training, service, product, and technology, together.

            Kamloops, BC

            Creston, BC

            Spruce Grove, AB

            Moose Jaw, SK

            Balcarres, SK

            Odessa, SK

            Moosomin, SK

            Parkhill, ON

            Renfrew, ON

            Kemptville, ON

            James Rundell

            Spruce Grove, Alberta

            "These guys will get you to be good at it, not just use it"

            Get in touch:
